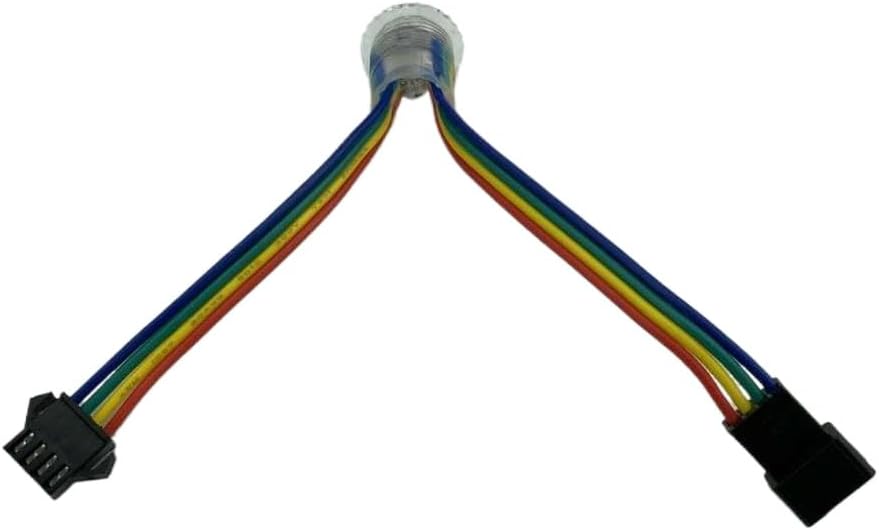

WS2815 DC12V Addressable 16mm Diameter RGB Full Color LED Module 0.24W One WS2815 LED IP68 Clear Cover

Adopts WS2815 5050 SMD LED as light source.Achieves IP68 protection level.Each module functions as one pixel, requiring three DMX channels for full RGB color control and supporting individual addressing.Designed for easy installation using screw mounting.Manufactured via injection molding with a clear cover.Uses transparent with good cold resistance.Compatible with DMX matrix controllers, SPI pixel controllers, and online controllers.: WU-16mm-WS2815-12V-clear Color: Full color RGB (WS2815) LED quantity: One WS2815 5050 SMD RGB LED per module Input voltage: DC 12 V Maximum current: 20 mA Maximum power: 0.24 W Driver method: Constant current Diameter: 16 mm Viewing angle: 150–180 degrees Protection level: IP68 Certifications: CE, RoHS Standard connection: Input – male 4-pin JST connector; Output – female 4-pin JST connector Standard wire length: 100 mm Mounting: Screw fixed : 35, 000 hours

• Model WS2815 DC12V addressable LED module with 16mm diameter for easy integration into custom projects
• RGB full-color capability enables dynamic color mixing and programmable effects via standard digital control protocols
• Each module consumes only 0.24W per WS2815 LED, supporting energy-efficient large-scale installations
• IP68-rated waterproof construction ensures outdoor and underwater in harsh environments
• Clear cover design delivers light transparency and uniform brightness distribution across the illuminated
