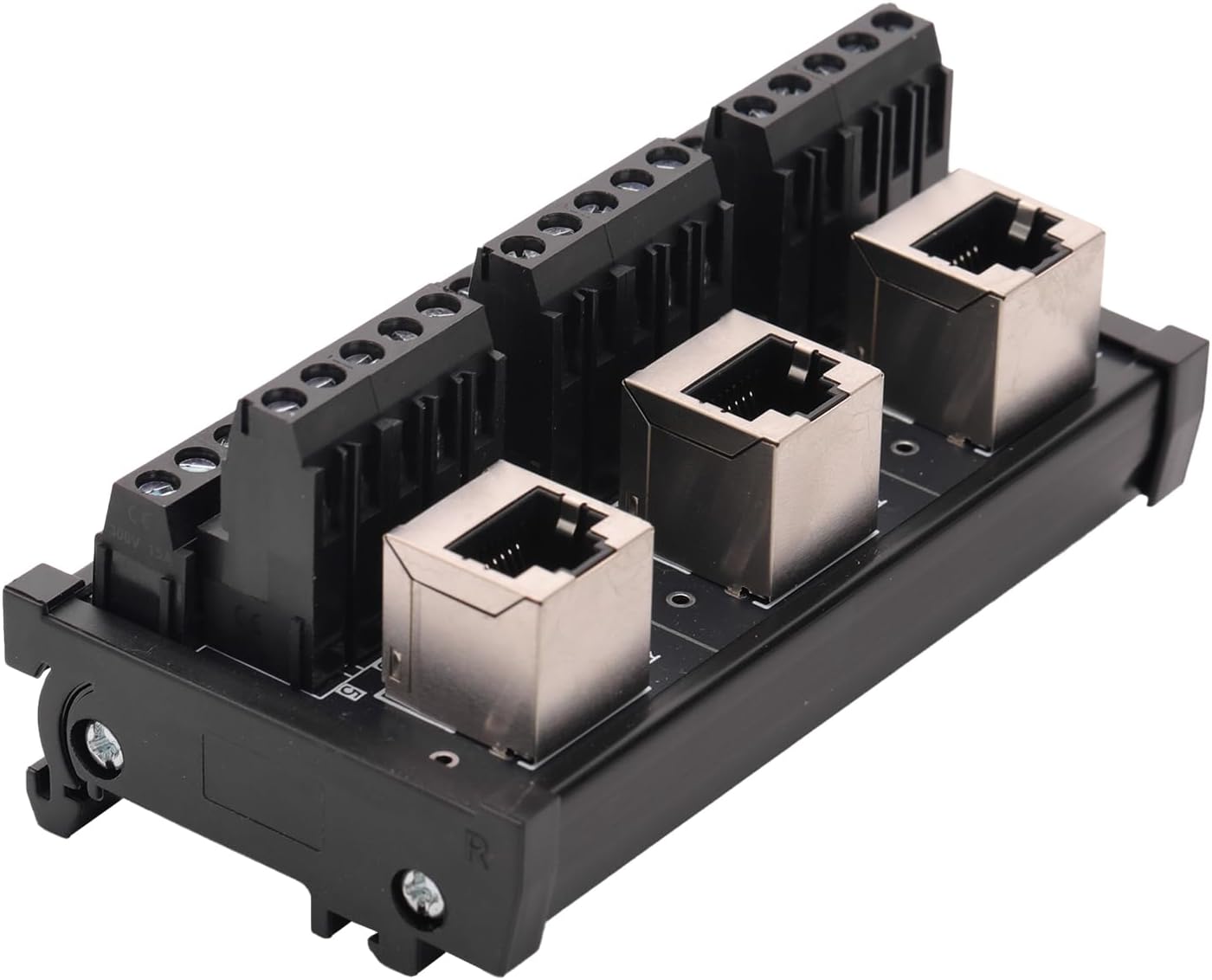

RJ45 8P8C DIN Rail Mount Ethernet Connector Distribution Breakout Board, Three Way RJ45 Vertical Jack Terminal Block Connector with 120Ohm Terminal Resistor
4.8 (27 items)
Limited Time Sale$16.19 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218152590 | Release Date | 2026/05/03 | List Price | $10.80 | Model Number | 218152590 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Easy to Use】This RJ45 breakout board provides a convenient method of accessing all the contacts of an 8P8C connector. Each of the 9 connections are brought out to a screw terminal for fast and secure termination to wires.
- 【Compact Design】This compact board will fit in tight spaces and has mounting holes to allow it to be securely fastened ensuring a solid connection.
- This RJ45 to screw terminal distribution is for Ethernet/DMX512/RS485/RS422/RS232.
- C45 DIN rail mounting (width 35mm), 15mm din rail compatible. The plastic enclosure on this model protects the board, and increases the overall durability.
- Terminal pitch：5.08mm/0.2". Adaptor board with 120Ω termination matching resistor, optional access or not.
| UPC | 763467216185 |
|---|---|
| Gauge | 26-16 |
| Model | RJ45 3-Way |
| Pitch | 5.08 Millimeters |
| Brand Name | Jienk |
| Unit Count | 1.0 Count |
| Part Number | JT733 |
| Manufacturer | Jienk |
| Material Type | Plastic |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 0.5 Amps |
| Number Of Poles | 8 |
| Centerline Length | 101 Millimeters |
| Specification Met | FCC |
| Number Of Contacts | 8 |
| Included Components | 3 Way RJ45 Ethernet Connector Breakout Board |
| Number of Positions | 24 |
| Item Dimensions W x H | 2.2"W x 1.85"H |
| Upper Temperature Rating | 50 Degrees Celsius |
