Nilight 6 Gang Switch Panel Green Circuit Control Relay System with Fuse Wiring Harness Toggle Momentary Strobe Flash Modes Automatic Dimmable ON Off Pod 12V 24V for Car Truck Camper SUV
4.1 (30 items)
Limited Time Sale$53.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218222325 | Release Date | 2026/05/03 | List Price | $35.99 | Model Number | 218222325 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

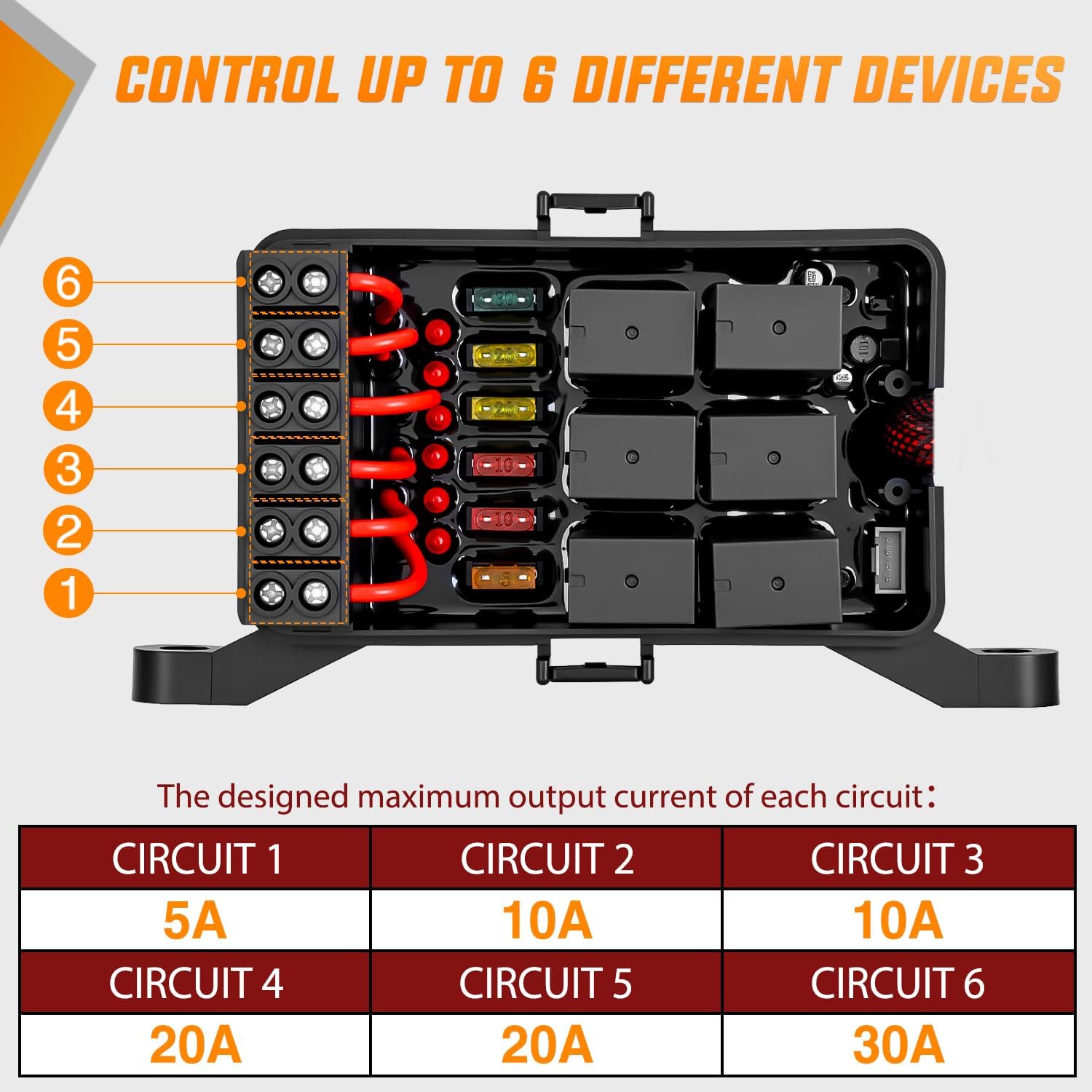

- 6 Gang Switch Panel System: Operating voltage: 12-24V DC, the max output power is rating at 720W 12V/1440W 24V. Allows you to control up to 6 different accessories at the same time. A perfect solution to clean up all messed up wiring harness and control everything through a switch pod

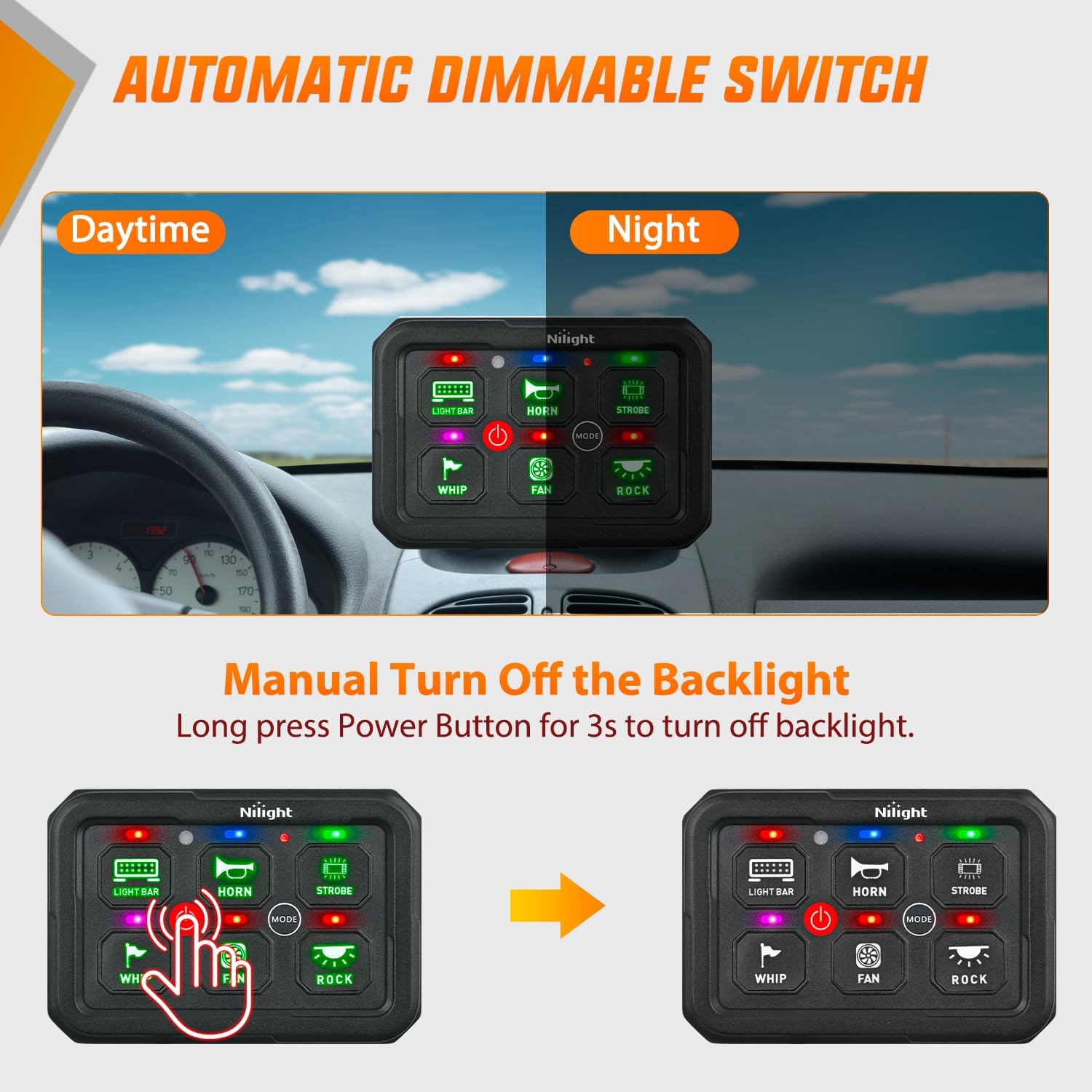

- Upgraded 4 Functions & Automatic Dimmable: Toggle (Red), Momentary (Blue), Strobe (Green), and Flash (Purple). Each function has a unique indicator light, allowing for easy customization of lighting modes to meet the needs of various occasions. With memory function, the panel remembers last setting automatically. The Backlit of switch panel adjusts automatically according to the surrounding environment. Maintain the most comfortable visual brightness while driving
- Safety Design: The relays and fuses provides you with a safety environment for all connections. Providing you with thermal protection, overload protection, over-voltage protection, and over-current protection
- Universal Fitment: This compact size switch panel system is perfect for all installation solutions. It can be installed in any 12-24V DC vehicles such as SUVs, RVs, Campers, ATVs, UTVs, RZRs, SxS, 4 Wheelers, Trucks, Boats, etc. The switch panel can be installed on the dashboard, center console, overhead sunglasses holder, etc. Don’t need to cut the hole, you can install it anywhere effortlessly

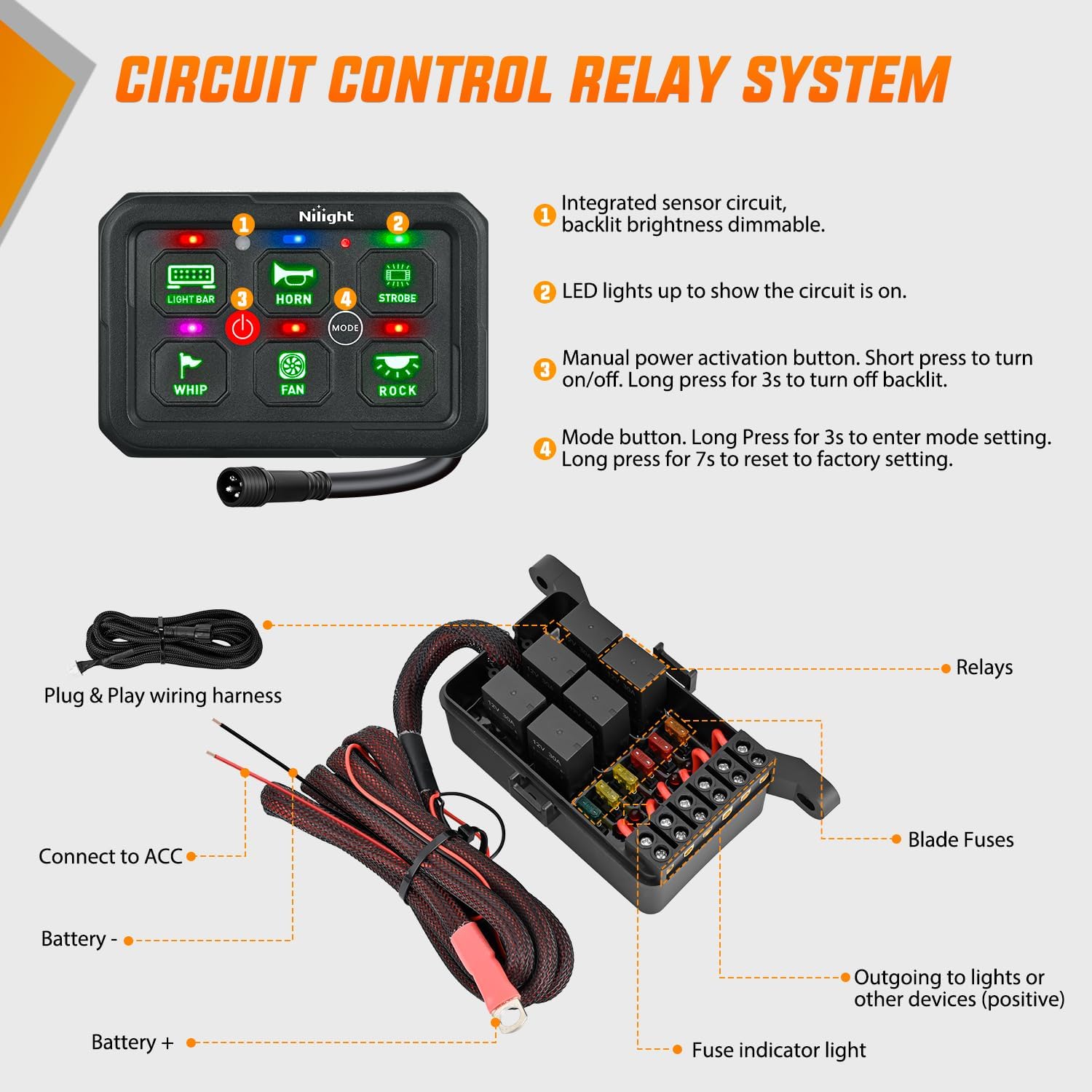

- All in one Design: The 6 gang switch panel system includes all installation hardwares. The packages includes a switch panel, circuit control relay box, fuses, wiring harness, power cables, 140 pcs reusable labels and 2 sets of switch panel mounting options. Which is designed to work together with better performance. Don’t needs to buy other parts
| UPC | 840323959995 |
|---|---|
| Color | Green |
| Model | 90293F |
| Wattage | 720 watts |
| Terminal | Screw |
| Brand Name | Nilight |
| Unit Count | 1.0 Count |
| Part Number | 90293F |
| Switch Type | Push Button |
| Circuit Type | 6-way |
| Contact Type | Normally Open |
| Control Type | Lighting Modes |
| Manufacturer | Nilight |
| Material Type | Aluminum |
| Mounting Type | Surface Mount |
| Connector Type | Plug In |
| Current Rating | 60 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 11 x 8 x 3 inches |
| Number of Items | 1 |
| Contact Material | Brass |
| Operating Voltage | 12 Volts |
| Specification Met | CE |
| Compatible Devices | SUVs, RVs, Campers, ATVs, UTVs, Trucks, Boats |
| Included Components | switch panel relay system |
| Number of Positions | 6 |
| Upper Temperature Rating | 85 Degrees Celsius |
| Compatible with Vehicle Type | Multiple vehicle types (SUV, RV, Camper, ATV, UTV, Truck, Boat) |
| International Protection Rating | IP54 |
