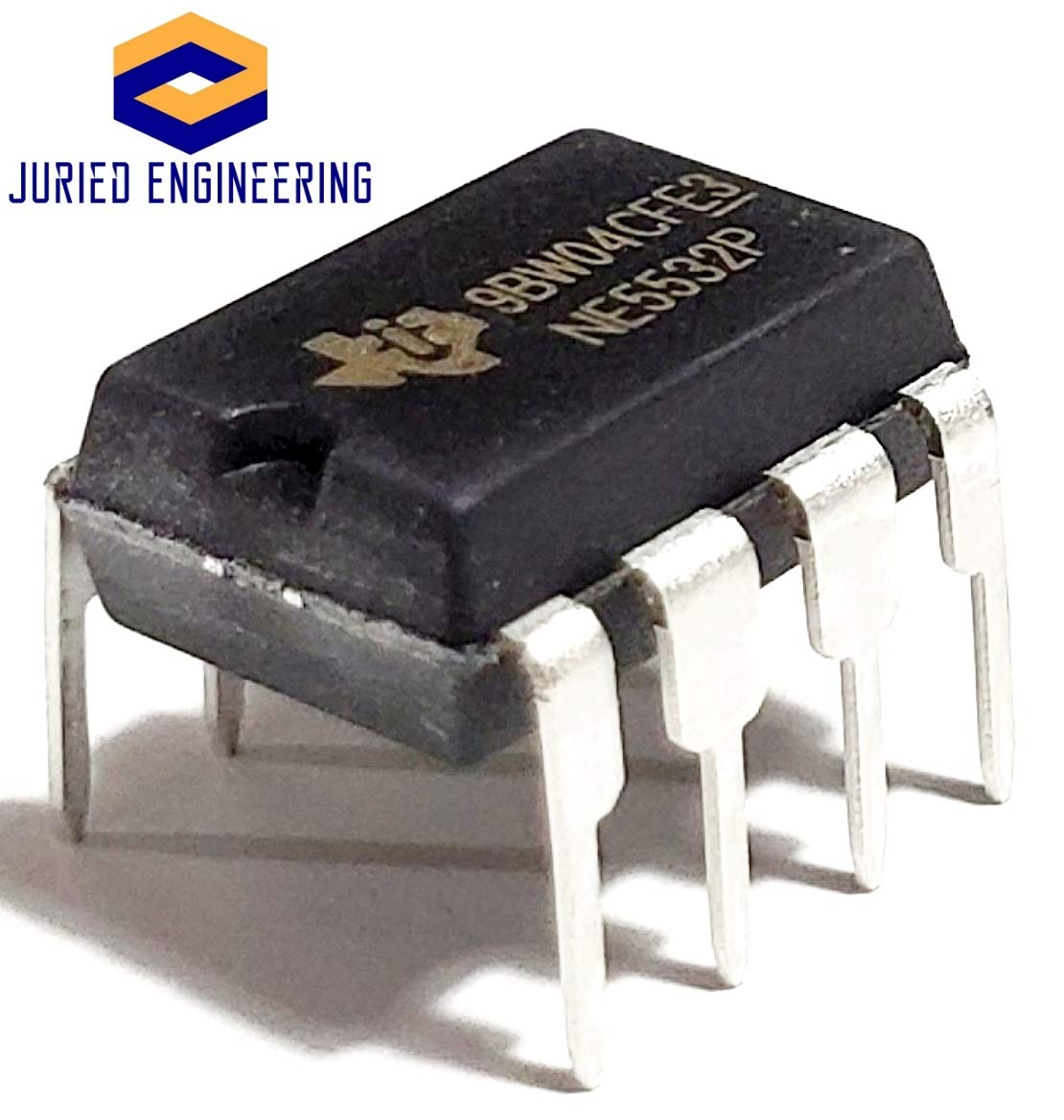

NE5532P NE5532 Dual Low-Noise High-Speed Audio Operational Amplifier Op Amp Breadboard-Friendly IC DIP-8 (Pack of 20)

The NE5532 devices are high-performance operational amplifiers combining excellent DC and AC characteristics. They feature very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, high slew rate, input-protection diodes, and output short-circuit protection. These operational amplifiers are compensated internally for unity-gain operation. These devices have specified maximum limits for equivalent input noise voltage. The NE5532 devices have a 10-MHz unity-gain bandwidth.

• High-performance operational amplifiers combining excellent DC and AC characteristics
• Equivalent Input Noise Voltage: 5 nV/√Hz Typ at 1 kHz, Unity-Gain Bandwidth: 10 MHz Typ
• Common-Mode Rejection Ratio: 100 dB Typ, High Slew Rate: 9 V/μs Typ
• High DC Voltage Gain: 100 V/mV Typ, Peak-to-Peak Output Voltage Swing 26 V Typ With VCC± = ±15 V and RL = 600 Ω
• Example Applications: AV Receivers, Embedded PCs, Netbooks, Video Broadcasting and Infrastructure: Scalable Platforms DVD Recorders and Players, Multichannel Video Transcoders, Pro Audio Mixers
