Johnson Level & Tool 40-6590 JLX Horizontal/Vertical Tracking Rotary System with GreenBrite Technology, Green, 1 Laser

flash sale iconLimited Time Sale
Until the end
05
09
27

$1,147.79 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New  $1,912.99
quantity

Product details

Management number 218953110 Release Date 2026/05/03 List Price $765.20 Model Number 218953110
Category

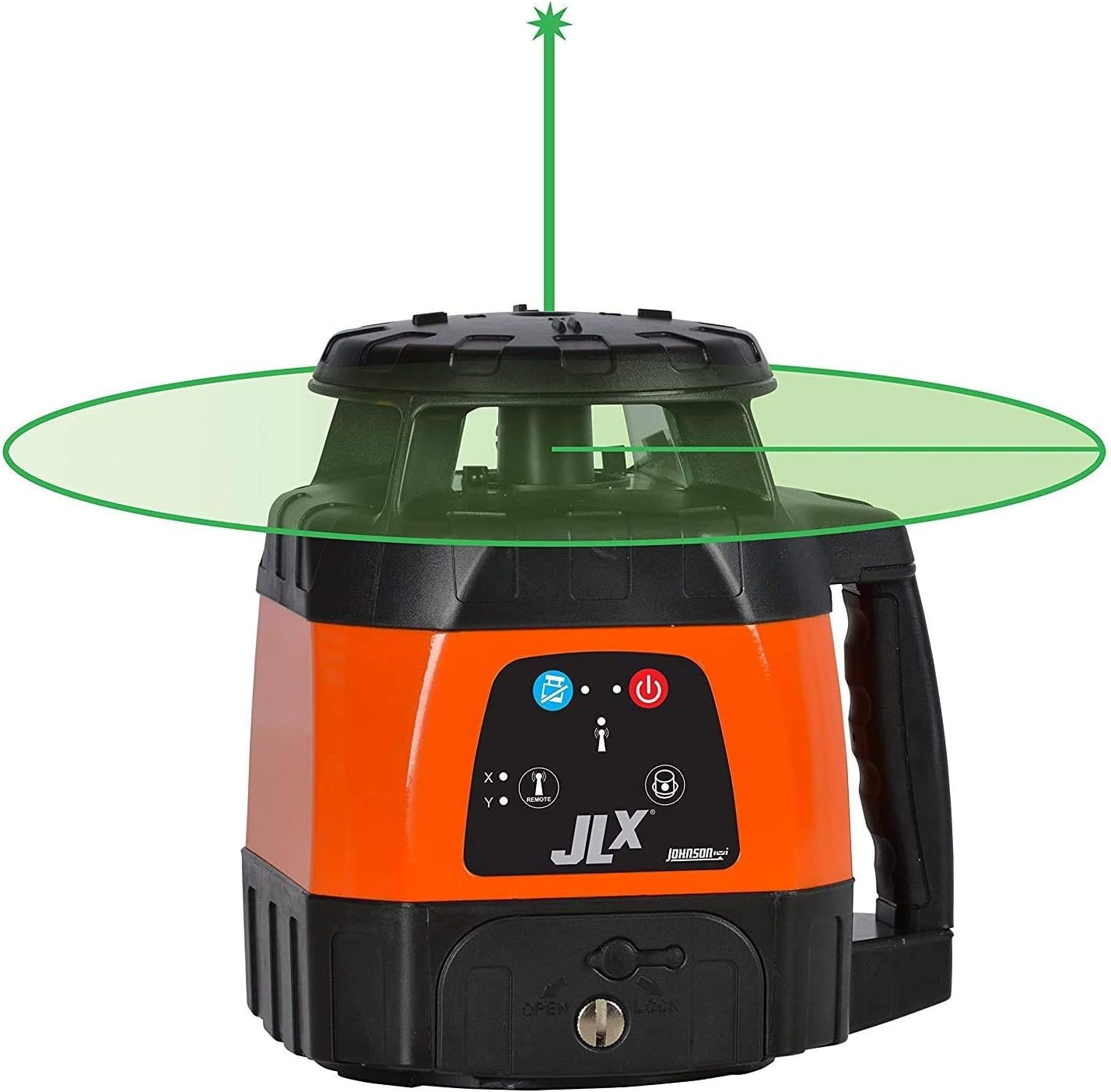

Level Up® to a tracking rotary. Simplify long-distance layout work and turn a two person job into a single person job. Set reference lines with ease, work indoors or outdoors. With the 40-6590 tracking rotary, you'll get everything you need to level your jobsite, both indoors and out, including a tripod, grade rod, vertical floor mount, detector, and remote control.

  • TRACKING LASER: This Johnson Rotary System simplifies long-distance layout work and turns a two-person job into a single person job. By utilizing the GreenBrite Technology; it releases a green beam that is 400% more visible than the red one.
  • REFERENCE LINE LAYOUT: For operation; the laser level can be placed over the first reference point. The detector can be placed on the second reference point. It tracks to the detector positions for simple reference line layout.
  • HORIZONTAL/VERTICAL OPERATION: This tracking rotary can track in both horizontal and vertical plane. The vertical mode is perfect for walls or forms layout. Moreover; the slope track/slope match to 5° in both the X and Y axes.
  • APPLICATIONS: This Tracking Rotary Laser is great for framing; drywall track; and tilt-up work. Other interior applications include drop ceilings; wainscoting; and more. Outside; it can be used for grading and excavating.
  • PRODUCT SPECIFICATIONS: This green tracking laser utilizes NIMH or 4 “C” alkaline batteries and has a battery life of 18 hours with NiMH; 16 hours with alkaline. The rotation speeds are 300 and 800 RPM; while the scanning modes are 0°; 30°; and 60°.
  • Laser Classification: Class llla Maximum Power Output: ≤5mW
UPC 049448065905
Color Green,red
Brand Name Johnson
Style Name Laser System
Unit Count 1.0 Count
Item Weight 35.3 Pounds
Manufacturer Johnson Level & Tool
Model Number 406590
Item Type Name Rotary Laser System
Operation Mode Automatic
Included Components 40-6590 Includes > NiMH battery and 6.4V charger, 4 "C" alkaline battery compartment (batteries not included), detector with clamp and 4 "AA" alkaline batteries, remote control with 2 "AA" alkaline batteries, tinted glasses, magnetic target, vertical bracket, 13' grade rod, tripod, instruction manual, hard-shell carrying case
Manufacturer Part Number 406590
Manufacturer Warranty Description 3 Year Warranty: Johnson Level warrants this product against defects in material and workmanship for three years after the confirmed purchase date. At its option, the company will replace or repair the product if it fails under normal use.
Global Trade Identification Number 00049448065905
