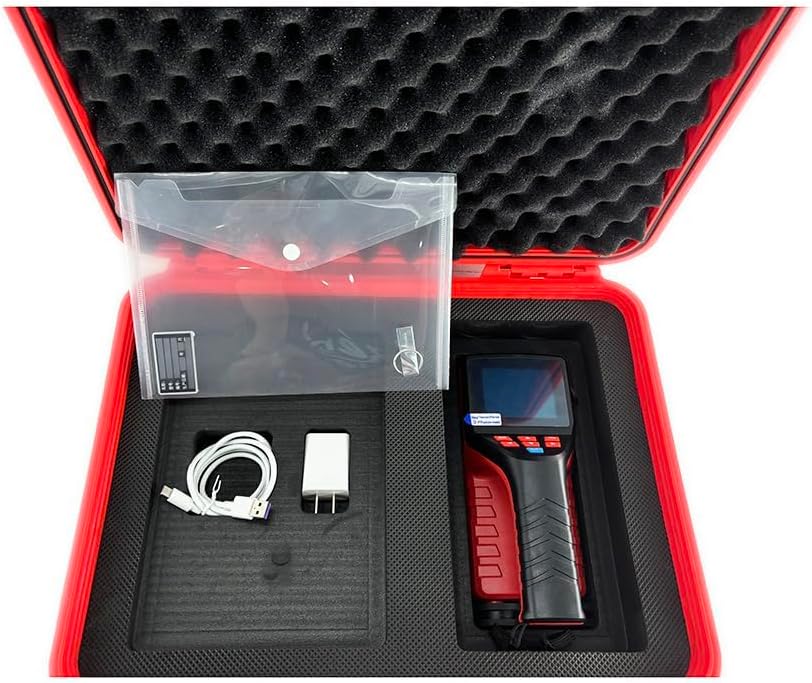

Integrated Rebar Finder Concrete Rebar locator scanner with Rebar Diameter Setting Range φ6mm~φ50mm Automatic Interpretation of Rebar Position Center Intensive Waveform Detection

Product features: ◆Measure the thickness of the concrete protective layer ◆Positioning of reinforcement ◆Estimated rebar diameter ◆Test rebar spacing, display rebar grid distribution, ◆Detection of magnetic and electrical conductors in non-magnetic and non-conductive media. Technical features: ◆The thickness of reinforcement protective layer, the position of reinforcement and the spacing of reinforcement are displayed on the same screen. Automatic interpretation of rebar position center; ◆Two-dimensional l-a-s-e-r positioning, real-time display of rebar position and adjacent rebar center line; ◆Display frame and indicator signal value multiple reminders, convenient rebar positioning and drilling core; ◆The pattern dense reinforcement algorithm is optimized to reduce stirrup interference effectively. ◆Intensive waveform detection greatly improves the accuracy of the number of rebars and the thickness of the protective layer; ◆Reverse compensation, repair the complex site automatic calculation, compensate the protection layer data deviation; Specification: ◆1. rebar diameter setting range: φ6mm~φ50mm ◆2. Protective layer thickness measurement (nominal) range: The first range (nominal) range: 1mm ~ 120mm The second range (nominal) range: 5mm ~ 210mm; ◆3. Protective layer thickness calibration range: 0 ~ ±50 mm; ◆2.Measuring range of different rebar diameters: Range rebar diameter(mm):φ6～φ8----φ10～φ20----φ22 and abovev Small range（mm）:1～60----1～80----1～120 wide-range（mm）:5～120----5～160----5～210 ◆3.different thickness error range: Range error range（mm）:±1----±2----±4 Small range（mm）:1～80----81～120----/ wide-range（mm）:5～80----81～120----121～210 ◆4. Diameter estimation range: φ6mm~φ50mm ◆5, the maximum error of diameter estimation (mm) : ±1 mm ◆6, distance accuracy: ±1mm ◆7, scanning mode: conventional scanning, procedure scanning, grid scanning, profile scanning, fine scanning, image scanning ◆8, power supply: built-in large capacity lithium battery ◆9, operation language: Chinese and English switch ◆10, backlight brightness: 8 adjustable ◆11, theme setting: 5 kinds of theme choice ◆12, working temperature: -10℃ ~ +50℃ ◆13, host volume: 219mm×92mm×106mm ◆14. Weight: 0.6kg ◆Standard accessories：host, charger, software CD, packing case According to the standard: ◆GB 50010-2010 Code for Design of Concrete Structures (2015 edition) ◆GB 50204-2015 "Concrete structure engineering construction quality acceptance Code" ◆GB/T50344-2019 "Technical Standard for Testing Building Structures" ◆JGJ/T152-2019 "Technical Specification for Inspection of rebars in Concrete" ◆DB11/T365-2016 "Electromagnetic induction method test rebar protective layer thickness and rebar diameter technical specification" ◆GBT/50784-2013 "Technical Standard for On-site Testing of Concrete Structures"

• 1.Reinforcing steel protective layer thickness, rebar location and rebar spacing are displayed on the same screen; rebar location center is automatically read;
• 2.2D l-a-s-e-r positioning, real-time display of rebar location and adjacent rebar centerline;
• 3. Multiple reminders of the signal value of the display frame and indicator lamps facilitate rebar positioning and core drilling;
• 4. Optimization of the pattern dense rebar algorithm, effectively reducing hoop interference; Dense waveform detection, the accuracy of the number of rebar roots and protective layer thickness values is greatly improved;
• 5.Reverse compensation, automatic calculation of complex site for repair, compensation of protective layer data deviation;
