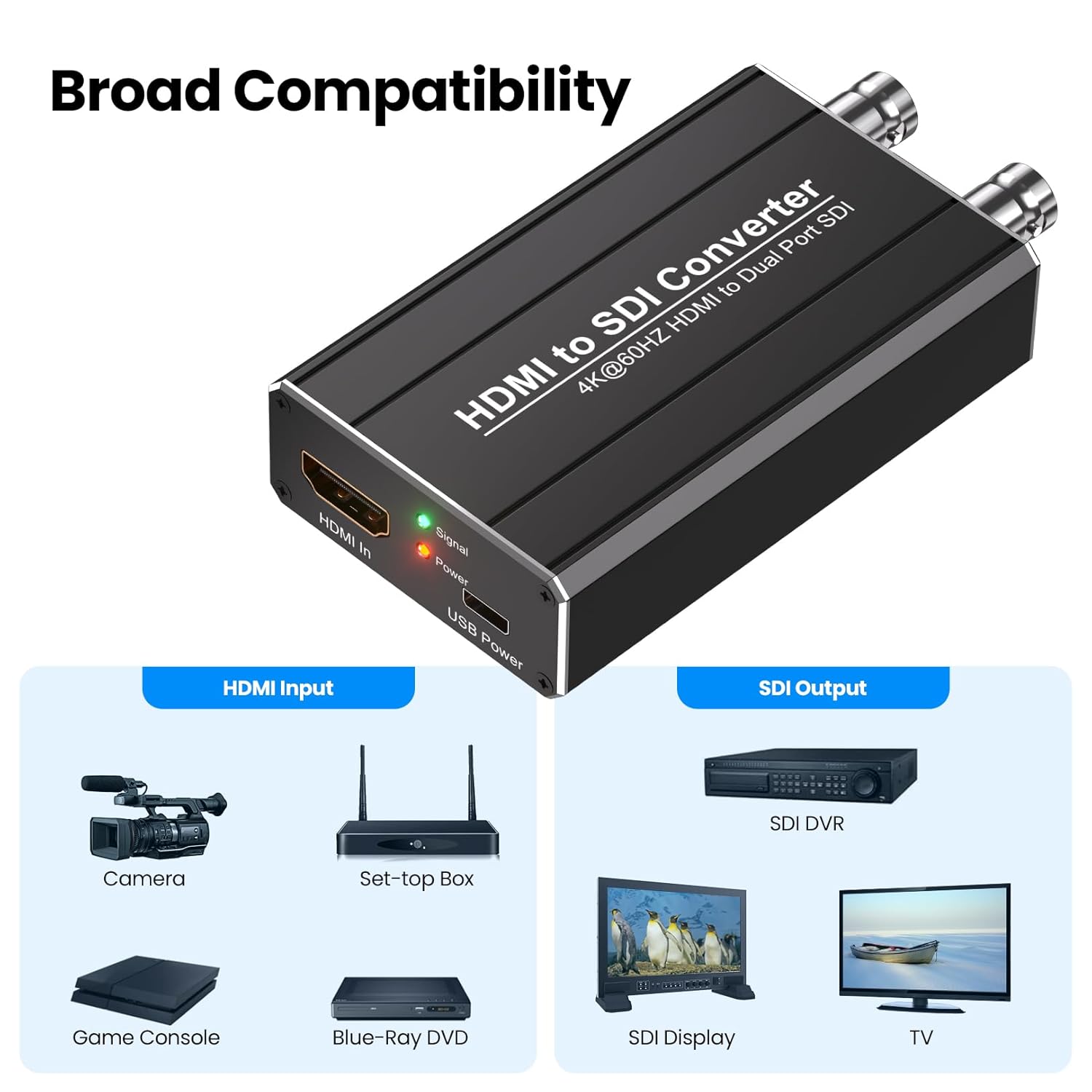

HDMI to SDI Converter, Support Dual Port SDI Output, 4Kx2K/60Hz HDMI 2.0 Input and 3G-SDI/HD-SDI Output, Auto Format Detection & Audio Embedder

This HDMI to SDI converter is tailor-made to transform HDMI signals into broadcast-grade 3G-SDI/HD-SDI signals, equipped with auto format detection and audio embedding features—ideal for professionals in broadcasting, live events, or video production who need seamless signal bridging. As a dedicated HDMI to SDI device, it prioritizes both image quality and transmission stability, making it a reliable choice for various AV setups. Important Notes 1.This device works exclusively as an HDMI to SDI converter; it cannot be reversed to convert SDI to HDMI. 2.The HDMI to SDI adapter only supports SDI signal coaxial cables. It is not compatible with RF, CVBS, AHD, TVI, or CVI signals. 3.While it accepts HDMI input up to 4K@60Hz, the converter does not decode HDCP 2.2—verify your source content’s compatibility if HDCP is involved. Detailed Specifications: 1.Input Connector: 1 x HDMI Type A (for HDMI signal input) 2.Output Connectors: 2 x Male BNC (supports only SDI signals) 3.HDMI Input Resolutions: 480i@60Hz, 576i@50Hz, 480P@60Hz, 576P@60Hz, 720P@50/60Hz, 1080p@24/25/30/50/60Hz, 800x600P@60Hz, 1024x768P@60Hz, 1280x800P@60Hz, 1280x960P@60Hz, 1360x768P@60Hz, 1400x1050P@60Hz, 1440x900P@60Hz, 1600x1200P@60Hz, 1680x1050P@60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25/30/50/60Hz 4.SDI Output Resolutions: 720P@50/60Hz, 1080P@24/25/30/50/60Hz (compatible with HD-SDI/3G-SDI) 5.SDI Data Rates: 270Mb/s, 1.485Gbps, 2.97Gbps What You Get 1 x 4K-Capable HDMI to SDI Converter 1 x Power Plug 1 x Power Cable 1 x User Instruction Manual

• 【HDMI to SDI Converter】This HDMI in SDI out converter allows users to convert HDMI signals to broadcast quality 3G-SDI/HD-SDI signals. Equipped with auto format detection and audio embedding features—ideal for professionals in broadcasting, live events, or video production who need seamless signal bridging.
• 【Ultra HD 4K/60Hz HDMI Input & Versatile SDI Output】This HDMI to SDI converter supports HDMI 2.0 resolution input, enabling a maximum resolution of 4Kx2K@60Hz—delivering crisp, detailed ultra-high-definition visuals from your HDMI source. For SDI output, it covers a range of practical resolutions: 720P@50/60Hz and 1080P@24/25/30Hz (compatible with HD-SDI standards) , as well as 1080P@50/60Hz (optimized for 3G-SDI) . Please note that this converter does not decode HDCP 2.2; its core function is to convert signal formats, not handle HDCP encryption.
• 【Dual SDI Output Ports for Enhanced Connectivity】A standout feature of this HDMI to SDI converter is its dual male BNC(SDI signals only) output ports. This design lets you connect two SDI monitors, projectors, or recording devices at the same time—no extra signal splitters needed. Whether you’re monitoring a live feed on two screens or sending signals to multiple devices, this HDMI to SDI device simplifies your workflow and boosts efficiency.
• 【Long-Distance Signal Transmission Capability】When it comes to long-range signal delivery, this HDMI to SDI converter excels. It supports SDI coaxial cable transmission up to 300 feet for 3G-SDI signals and up to 500 feet for HD-SDI signals. This makes it perfect for large spaces like studios, concert venues, or conference halls, where stable signal transmission over extended distances is crucial—all while maintaining consistent video and audio quality.
• 【Plug-and-Play Design & Aluminum Shell】Designed for user-friendliness, this HDMI to SDI converter features true plug-and-play functionality: no complicated drivers or software installations are required. Just connect your HDMI source and SDI devices, and it’s ready to use. Its sturdy aluminum shell not only protects the internal components from damage but also provides excellent heat dissipation, ensuring the hdmi to sdi converter runs reliably even during long hours of continuous use.
