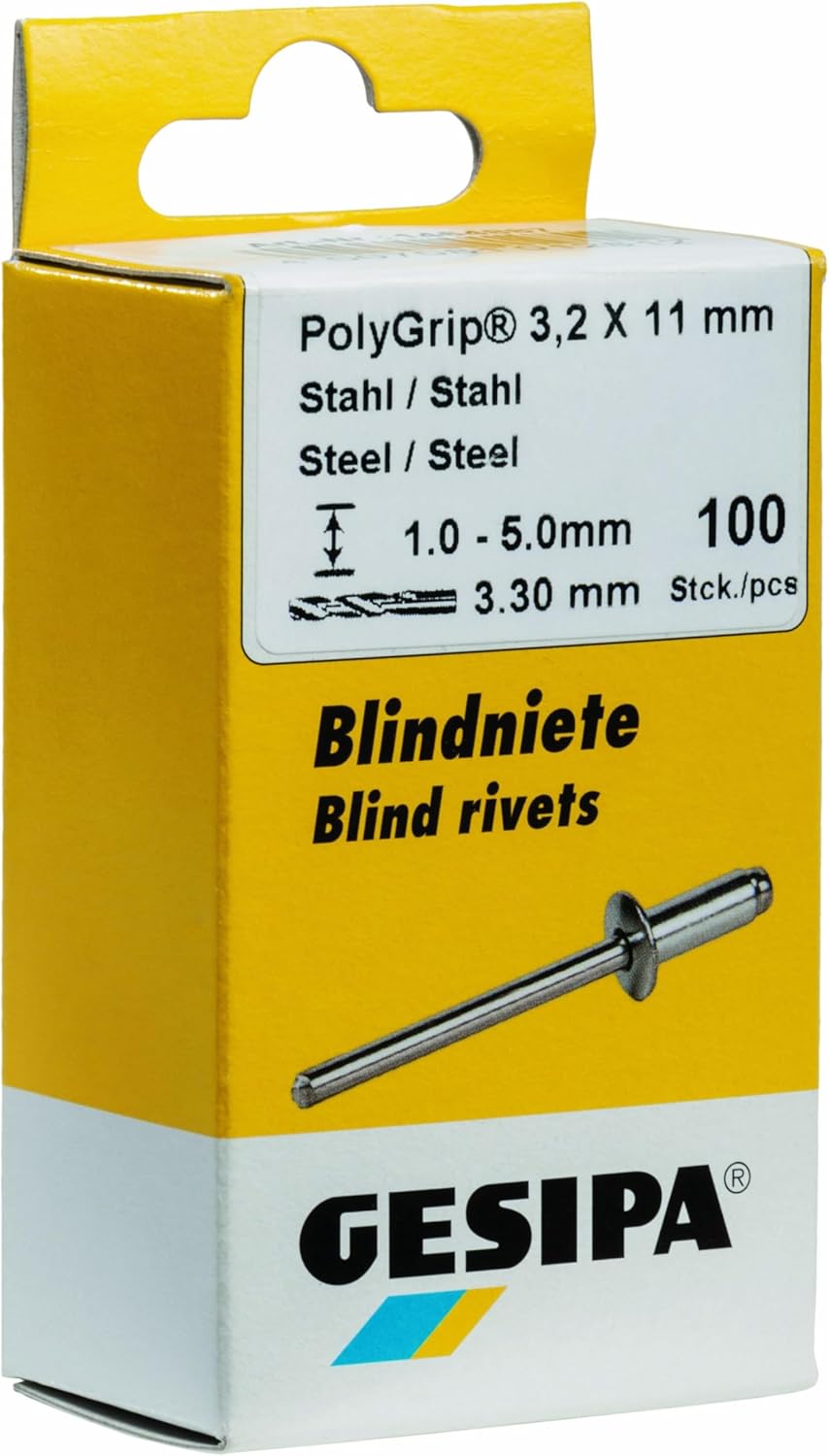

GESIPA Blind Rivets Mini Pack of 100 (Rivet Shank Diameter 3 mm, Shear Force 700 N, Tensile Force 900 N, Flat Round Head) 1433530

GESIPA blind rivets. Technically, the blind rivet consists of two components, the hollow rivet and the rivet mandrel. While screwing, clinching and punching rivets etc. the component must always be accessible on both sides, the really special thing about the blind rivet is that only one-sided component accessibility is required. Connect sustainably During the setting process, the rivet mandrel is pulled with the chuck jaws of the setting tool and deforms the hollow rivet until the predefined, secure fit in the component. Finally, the rivet mandrel tears off at the intended point, the predetermined breaking point, and can be recycled The residual rivet mandrel is the residual mandrel remaining in the hollow rivet and can perform an additional securing function depending on the application. For every use. Blind rivets are available in a wide range of shapes, materials, shapes, lengths and colours. Depending on the task that a blind rivet is supposed to perform, GESIPA can choose between a standard model available from stock or a blind rivet specially designed for a application. A rule of thumb: Joint material + rivet diameter = rivet shaft length. Terms The blind rivet consists of two parts: the hollow rivet and the rivet mandrel. The hollow rivet consists of the setting head and the hollow rivet shaft. The setting head is located on the processing side and is variable in diameter and shape. It is available in the variants round head, countersunk head and large head. The rivet shaft is available in different lengths depending on the material thickness to be riveted. The rivet mandrel has the task of deforming the rivet shaft. It contains the predetermined breaking point. Here, the rivet mandrel tears off after completed deformation of the rivet. The residual rivet mandrel is the proportion of the rivet mandrel remaining in the hollow rivet. The residual mandrel is the proportion of the rivet mandrel, which is torn off the set rivet by means of a blind rivet setting tool.

• Aluminium, steel or painted or anodised, the standard range offers the right material combination and dimensions for every application
• GESIPA Standard blind rivets are available in a wide range of shapes, materials, shapes, lengths and also colours
• The blind rivet types aluminium/steel, steel/steel and copper/bronze are also available in practical small packaging with 50 or 100 pieces per packaging unit
• Technical details: rivet shaft diameter 3 mm, shear force 700 N, tensile force 900 N, head shape round head, bore hole diameter 3.1 mm, material rivet mandrel: galvanised steel, material hollow rivet: aluminium alloy, set head diameter max. 6.5 mm, clamping range 1.0-3.0 mm / rivet shaft length 6 mm
• Box contents: 100 blind rivets
