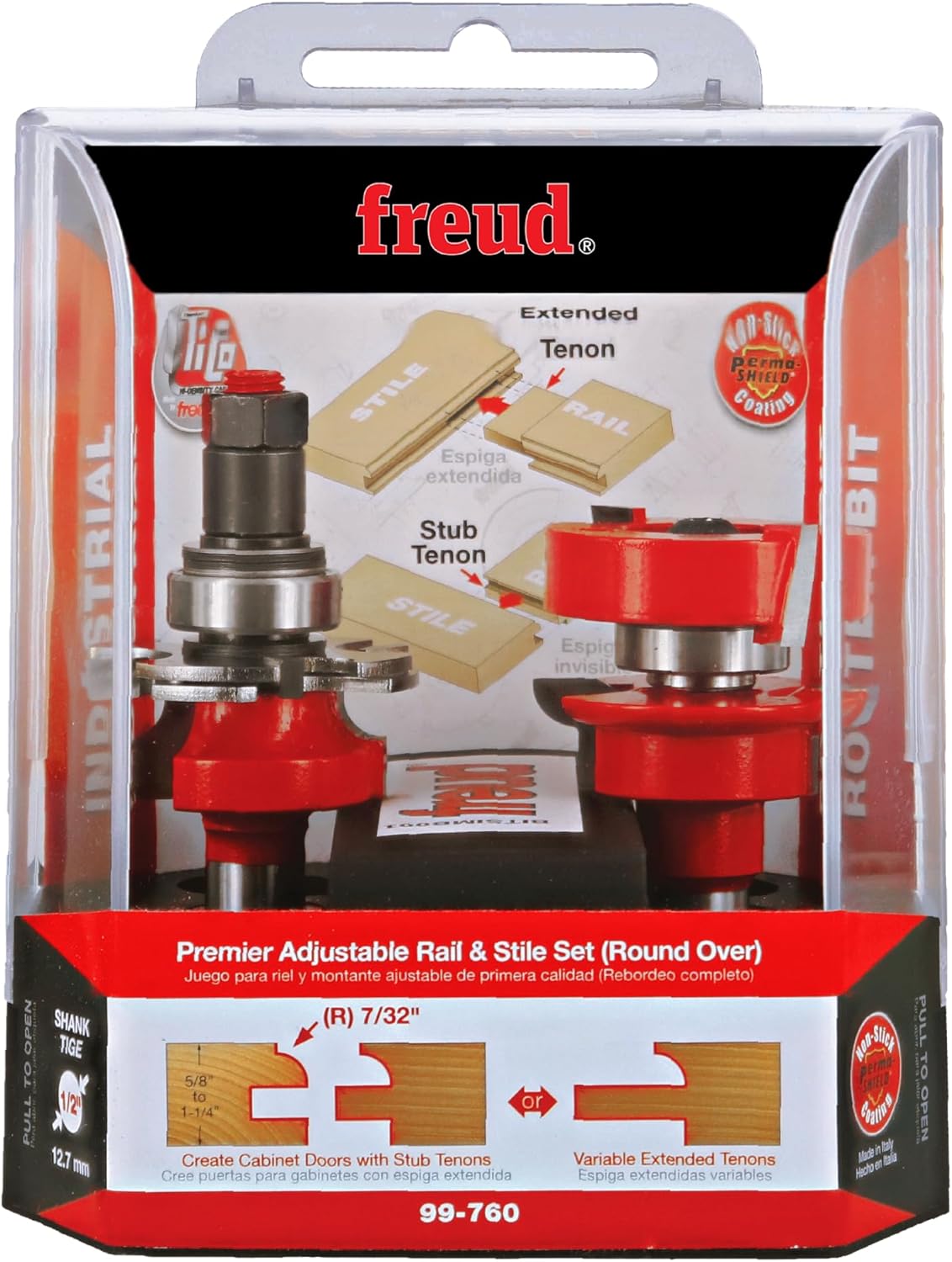

Freud 99-760: 1-11/16" (dia.) Premier Adjustable Rail & Stile Bit with 1/2" shank (round over), 3-3/4" overall length
4.0 (103 items)
Limited Time Sale$68.38 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209035107 | Release Date | 2026/03/29 | List Price | $45.59 | Model Number | 209035107 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Description 1-11/16" (Dia.) Premier Adjustable Rail & Stile Bit - Round Over From the Manufacturer Imagine two router bits that create any door in 5/8-Inch to 1-1/4-Inch door thickness range, create "rattle free" flat panel doors, create any length long tenon construction and more. That's what Freud's new Premier Adjustable Rail & Stile router bit systems do. They work exactly like traditional rail and stile router bits to enhance door construction. Adjustable shims enable both a tight fit when using plywood panels and the ability to use thick panels ( from 5.5mm to 6.35mm ). The unique cutter geometry virtually eliminates tearout. Top portion of cutter, including bearing and spindle, is removed to produce the front of the long tenon profile for blind tenons, through tenons, or bridle joints. Bits feature Freud's Perma-Shield coating that reduces heat and pitch build up along with rust, and Freud's TiCo Hi-Density Carbide to maximize bit life and material finish. Optional cutters are available for double profile doors (99-860) and glass panel doors (54-760) with variable thicknesses and long tenons for perfecting matching profiles on all doors because it's the same set of router bits. This set produces a quarter round profile and all bits have 1/2-Inch shanks.
- Specs: Large Radius 7/32", Overall Dia. 1-11/16", Overall Length 3-3/4", Shank Dia. 1/2"
- Build rail and stile doors with your choice of five different profiles with thickness from 5/8" to 1-1/4"
- Patented Extended Tenon Capability for milling extra-strong long tenon joints
- Unique cutter geometry to eliminate tearout
- TiCo Hi-Density Carbide to maximize bit life and material finish
- Freud Perma-SHIELD Coating
| UPC | 008925087090 |
|---|---|
| Model | 99-760 |
| Cut Type | Rail & Stile Cut |
| Size Name | One Size |
| Brand Name | Freud |
| Unit Count | 1.0 Count |
| Item Weight | 1.39 Pounds |
| Part Number | 99-760 |
| Manufacturer | Freud |
| Item Diameter | 1.63 Inches |
| Material Type | Blend |
| Item Type Name | New Premier Adjustable Rail and Stile Router Bit System |
| Cutting Diameter | 1.88 Inches |
| Number of Flutes | 2 |
| Included Components | Adjustable Rail & Stile Set Router Bit |
| Warranty Description | Freud Limited Tooling Warranty. Contact Freud customer service for more details. 800-334-4429 |
| Global Trade Identification Number | 00008925087090 |
