Drilling Rig Hydraulic Core Drill Subsurface Drilling for Underground Exploration Remote Field Area Strong Power Smooth Drilling Geologists and Field Operators
4.7 (71 items)
Limited Time Sale$12,240.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218670727 | Release Date | 2026/05/03 | List Price | $8,160.00 | Model Number | 218670727 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

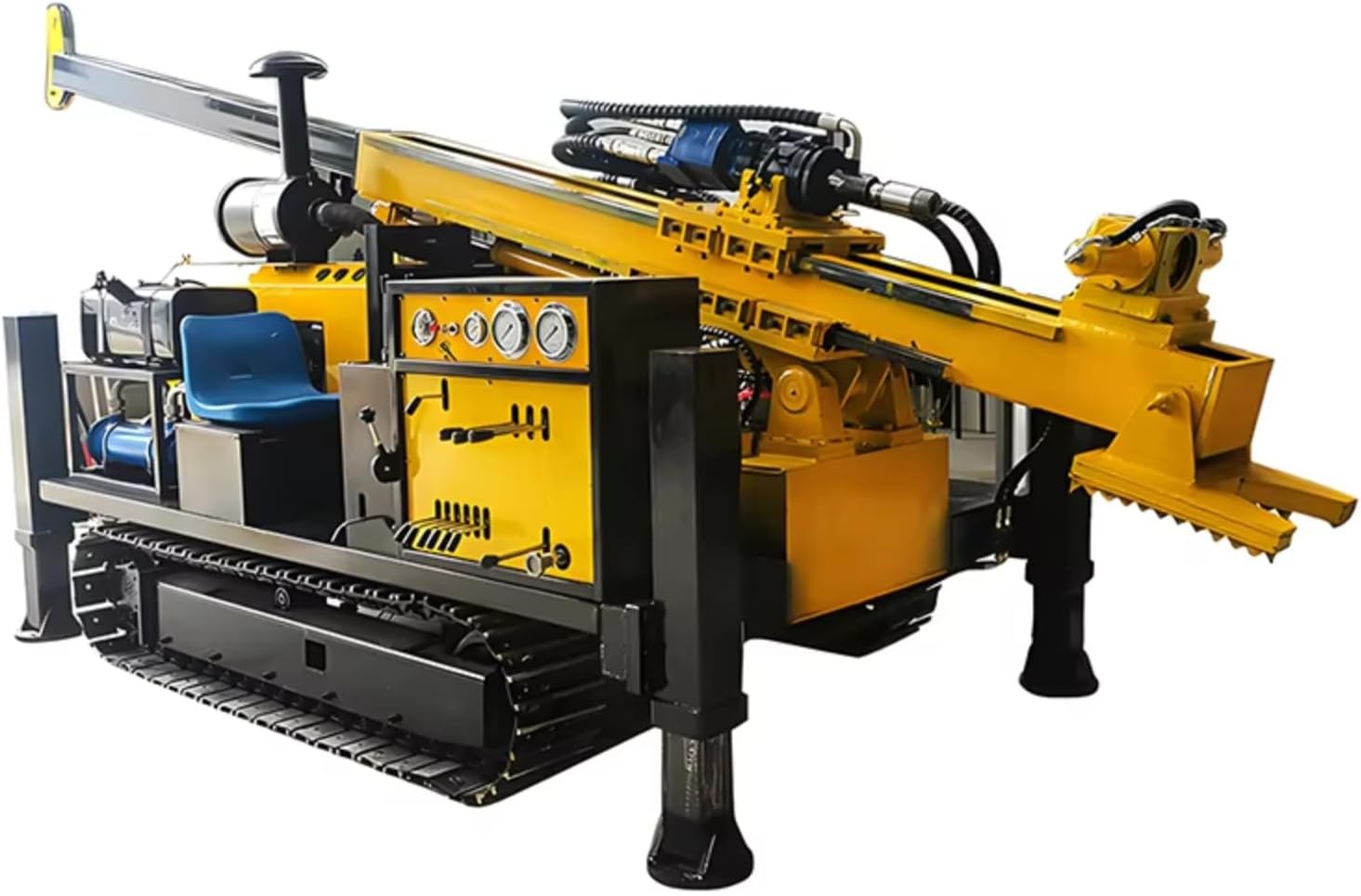

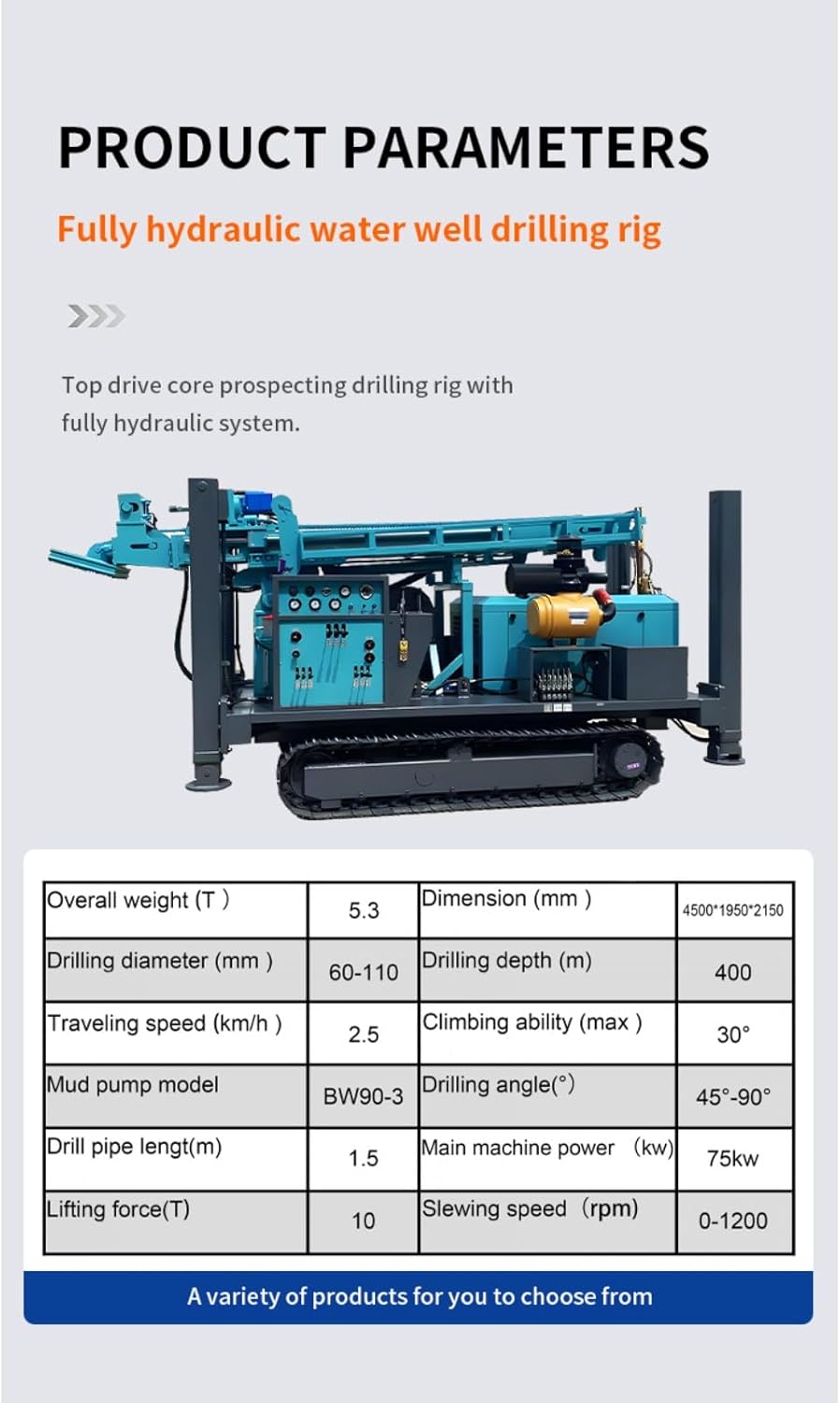

Product Name: Full Hydraulic Crawler Core Drilling Rig Type: Hydraulic Core Drill Rig Place of Origin: Henan, China Application: Mineral Exploration, Geotechnical Sampling, Geological Survey Warranty: 2 Years (Main Components) Drilling Diameter Range: 60-110 mm Max. Drilling Depth: 400 m Drill Pipe Length: 1.5 m Drilling Angle Range: 45° - 90° Main Engine Power: 75 kW Travel Speed: 2.5 km/h Climbing Ability: Up to 30° Overall Dimension (L*W*H): 4500*1950*2150 mm Overall Weight: 5.3 T Mobility: Crawler Mounted with Remote Control Key Features: Centralized console, hydraulic power head, compact body design. Highlights at a glance Hydraulic Drilling Rig: Suitable for deep geological exploration and mining projects. Large Drill Diameter: 350 mm allows for deeper and more precise drilling. High Capacity: 400m depth ensures extensive drilling capabilities. User-Friendly Operation: Easy to operate, ideal for both experienced and novice operators. Durable Design: Constructed for long-term use and heavy-duty applications. hydraulic core drilling rig, all-hydraulic core drill rig, full hydraulic core drilling rig granite diamond core drilling rig, hydraul drill rig, hydraulic core exploration rig
- 【Please note】The prices shown are not final. This product offers customization services, with various styles and accessories available. Prices vary depending on configuration. For more details or inquiries, please leave a message before purchasing or contact the manufacturer directly via WhatsApp at +86 13613852712. Please do not place an order directly. We'd love to serve you.
- 【All-Terrain Maneuverability】The crawler chassis design allows the drill to move smoothly across rough job sites such as mountainous areas, remote exploration fields and mining zones, adapting well to various complex ground conditions commonly encountered in field operations.
- 【Hydraulic Operation Convenience】Its full hydraulic system enables easy and smooth control, reducing operational effort for field technicians and allowing for steady operation even during long hours of core sampling and drilling tasks.
- 【Versatile Application Scenarios】It is suitable for geological exploration, mining investigation, geotechnical survey and subsurface sampling, meeting the diverse needs of geologists, engineers and exploration teams in different field work.
- 【Stable Core Extraction】The integrated hydraulic design ensures consistent performance during core extraction, helping to obtain intact samples that support accurate analysis for geological and mining projects.
| Color | Customizable |
|---|---|
| Torque | 12 Newtons |
| Voltage | 220 Volts (AC) |
| Amperage | 22 Amps |
| Brand Name | Generic |
| Drill Type | Drill Press |
| Unit Count | 1 Count |
| Is Electric | Yes |
| Item Weight | 600 Kilograms |
| Manufacturer | China |
| Model Number | QYYYXZJ-004 |
| Power Source | Corded Electric |
| Material Type | Metal |
| Additional Features | Portable |
| Included Components | Battery Charger, Drill Attachment, User Manual |
| Maximum Rotational Speed | 1000 RPM |
| Item Dimensions L x W x H | 177"L x 76"W x 84"H |
| Manufacturer Warranty Description | 2 YEARS |
