Compatible with 43025-0800 8 Pin Micro-Fit 3.0 Receptacle Housing to Open End Cable Assembly Dual Row 8 Circuits Power Signal Cable (5PCS, 1.5M/4.92FT)

Specification:Product Name: Compatible With Micro-Fit 43025-0800 8 Circuits Power Signal CablePart No.: PCM-0877Connector A: Micro-Fit 3.0 Receptacle Housing, Dual Row, 8 Circuits, Compatible With 43025-0800Length: 1.5M/4.92FTCable Type: 20AWG*8C; UL2464 PVC JacketOD: 6.5MMVoltage Max: 300V ACCurrent Max: 3.5A

• ✔Micro-Fit 3.0 Standard Connector – The Cable Features Micro-Fit 3.0 Female Receptacle Housing, 3.0 mm Pitch, Dual Row, 8 Circuits, Compatible With 43025-0800.
• ✔Open-End Design – The Micro-Fit 3.0 Cable Assembly Comes with Open-ended Wires Providing maximum flexibility for custom integration and DIY projects. allows users to freely solder, crimp, or connect the wires to PCB board, power module, or terminal block according to their own design needs.
• ✔3.5A/300V Max – Micro-Fit 3.0 Open End Wire Assembly, 20AWG 8-Conductor Stranded Tinned Copper 20AWG Wire, Durable UL2464 PVC Jacket, Providing safe and stable power and signal transmission, Supports up to 3.5A per Contact and 300V AC.

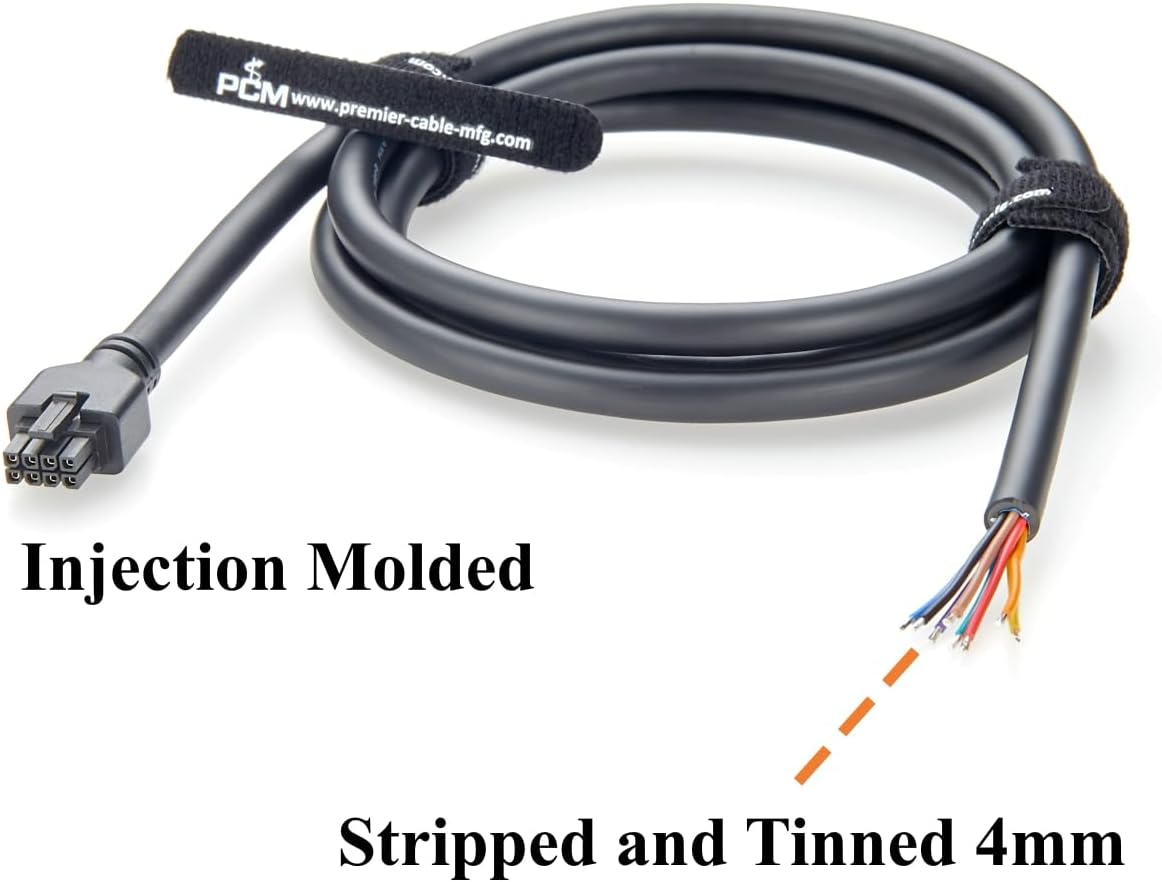

• ✔Overmolded – The Micro-Fit 3.0 Female Socket is injection molded, offers excellent durability and strain relief, provides stronger tensile strength, vibration resistance, and fixation capabilities.
• ✔Application – Micro-Fit 3.0 8 Circuits Powers Signal Cable, for Power Distribution, Wire-to-Board, Wire-to-Wire, Signal Transfer, PCB Connection & Control Board Wiring, Industrial Automation, Robotics, IoT devices, Embedded systems, Custom Wiring, Prototyping, DIY electronics, and so on.
• ✔Custom Cable – We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.
