50 x Glass Filled Reinforced, Super Nylon Socket Head, M4 x 20mm Plastic Nuts and Bolts, Washers, (5/32 x 25/32 in)
4.4 (19 items)
Limited Time Sale$14.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218097122 | Release Date | 2026/05/03 | List Price | $9.60 | Model Number | 218097122 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Please refer to the technical image for size details.||- Product Specifications - ||Product_SKU: 813. Product_Type: Socket Head Bolts. Product_Size: M4 x 20mm. Product_Color: Natural. Product_Quantity: 50 Pack. Product_Pitch (mm): 0.7mm. Product_Length (mm): 20mm. Product_Width (mm): 4mm. Product_Depth/Thickness (mm): 4mm. ||- Reference Details - ||Primary_Material: Nylon PA 66 / 50% Glass Fibre Reinforced. Product_Pitch: 0.028 inches. Product_Length: 0.787 inches. Product_Width: 0.157 inches. Product_Depth/Thickness (inches): 0.157 inches. ||- Additional Specifications - ||Bolt Product Image Drawing References: Stock Code: CR02292PA66+GFSocket Hex Head Boltsize: M4 x 20D: 4 mmPitch: 0.7 mmL: 20 mmHD: 7.0 mmHH: 3.91 mmHS: 3.05 mm. ||- Additional Description - While the melting point remains largely unchanged, the heat distortion temperature of PA66+GF (Glass Fibres) is superior to that of PA66, meaning that the composite can withstand higher temperatures before beginning to deform under load. The composite exhibits reduced moisture absorption, a significant improvement over PA66's susceptibility to moisture. Common applications include automotive components, industrial machinery and consumer goods where high strength and thermal resistance are required. Hex Bolts & Screws also known as plastic bolts, plastic screws, plastic bolt, plastic screw.||

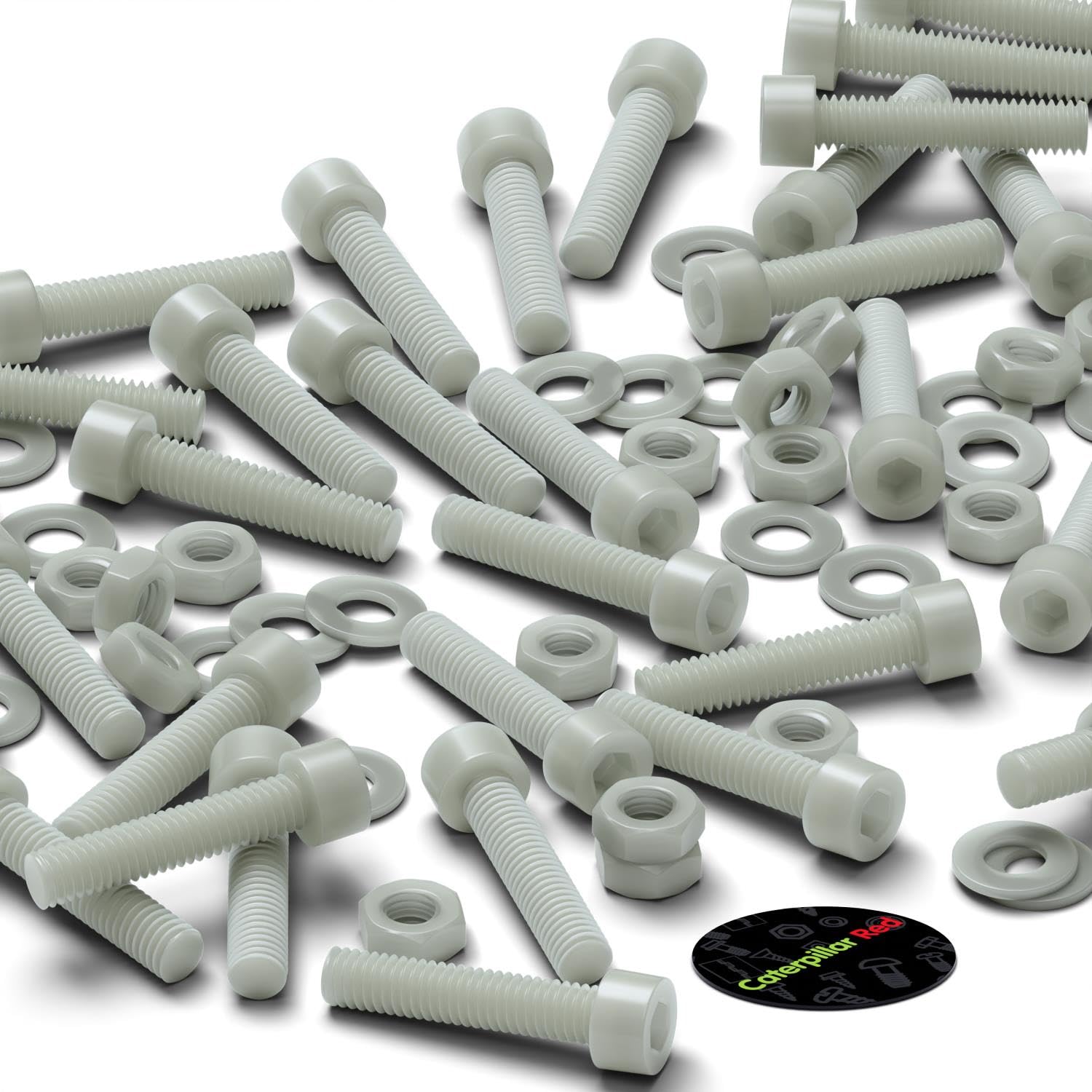

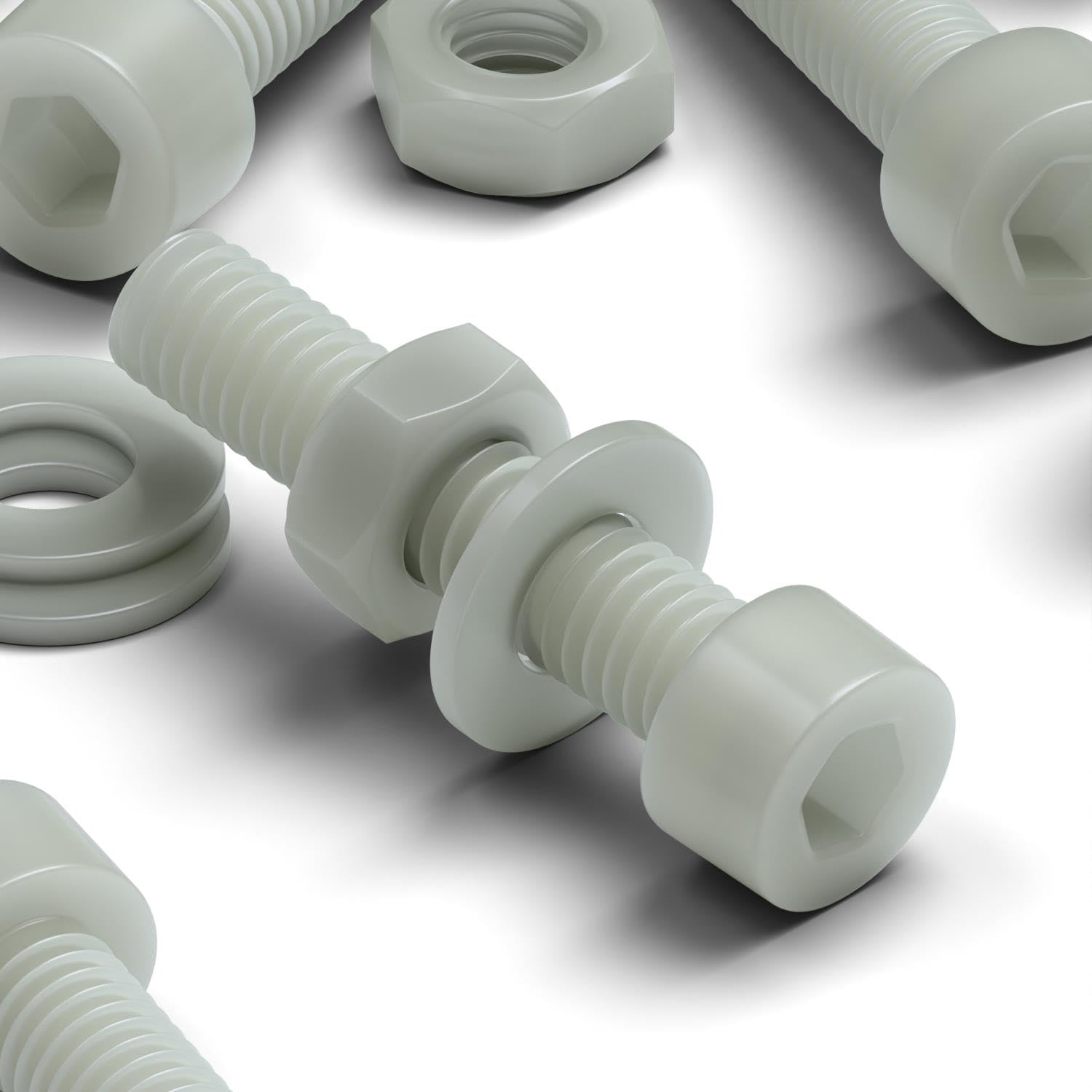

- 50x Bolts, 50x Nuts, 50x Washers. Material: PA 66 / 50% GF. Type: Socket Head Bolts. Length: 20mm. Diameter: 4mm. Pitch: 0.7mm. SKU: 813.
- The addition of 50% glass fibers enhances the heat deflection temperature, enabling the material to perform reliably at elevated temperatures.
- Glass fibers improve tensile strength, stiffness, and impact resistance while reducing the material's susceptibility to creep under load.
- The composite also possesses superior hardness, surface durability, and wear resistance compared to PA66.
- Repeated removal and refitting possible with excellent resistance to stripping in high torque applications.
| Brand | Caterpillar Red |
|---|---|
| Color | Natural |
| Model | 813 |
| Size Name | M4 x 20mm |
| Unit Count | 50.0 Count |
| Item Weight | 0.01 Kilograms |
| Part Number | 813 |
| Finish Types | Finished |
| Manufacturer | Caterpillar Red |
| Fastener Type | Standard |
| Material Type | Plastic |
| Item Dimensions | 0.79 x 0.16 x 0.16 inches |
| Number Of Items | 50 |
| Number of Pieces | 50 |
| Screw Head Style | Socket |
