2 Way 3/4 inch DN20 24VAC 24VDC 0-10V Stainless Steel 304 Proportional Integral Modulating Control Motorized Ball Valve
4.6 (84 items)
Limited Time Sale$142.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211105438 | Release Date | 2026/04/04 | List Price | $95.20 | Model Number | 211105438 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Actuator Comes With A Factory Default Setting Of 0-10V Control. Users Can Easily Change This To 2-10V Or 0-5V Control Through The Actuator Menu. This Flexible Control Option Makes It Suitable For A Variety Of Applications, Meeting Your Diverse Control Needs.
- Actuator Supports 24VAC/DC Voltage, With A Control Signal Range Of 0-10V (Default), Providing A Powerful Torque Output Of 20 N.M. Its Robust Acrylonitrile Butadiene Styrene (ABS) Housing Ensures Durability, And The ≤17mm Octagonal Design Complies With ISO5211 (F03/04/05) Standard Connection Sizes, Making Installation Easy And Ensuring Strong Adaptability.

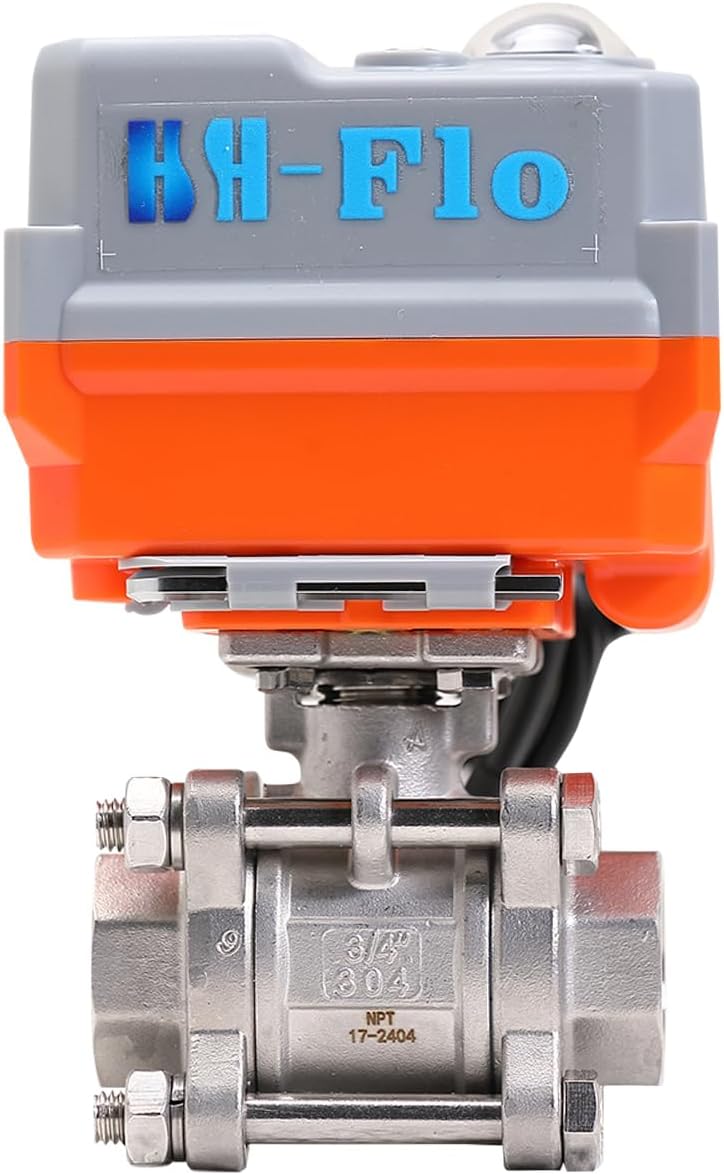

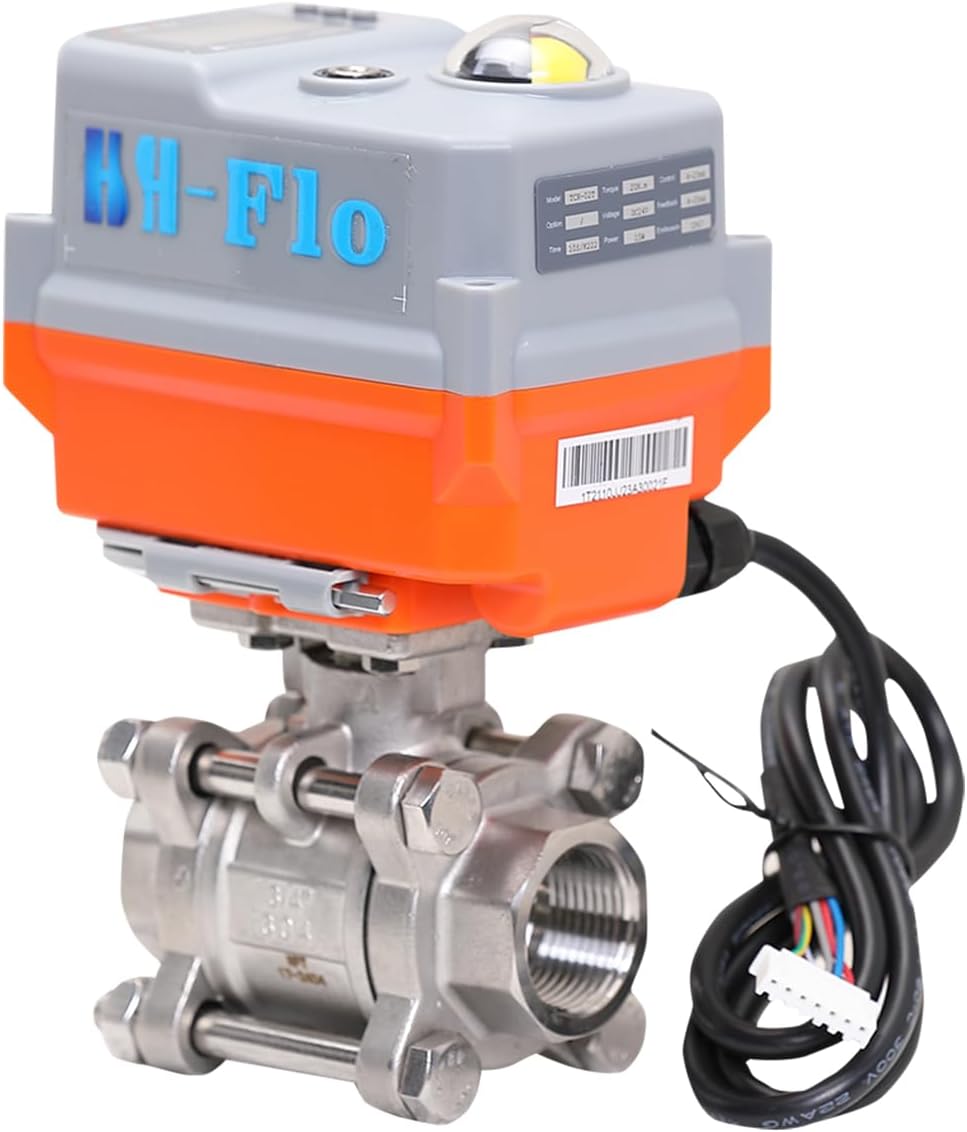

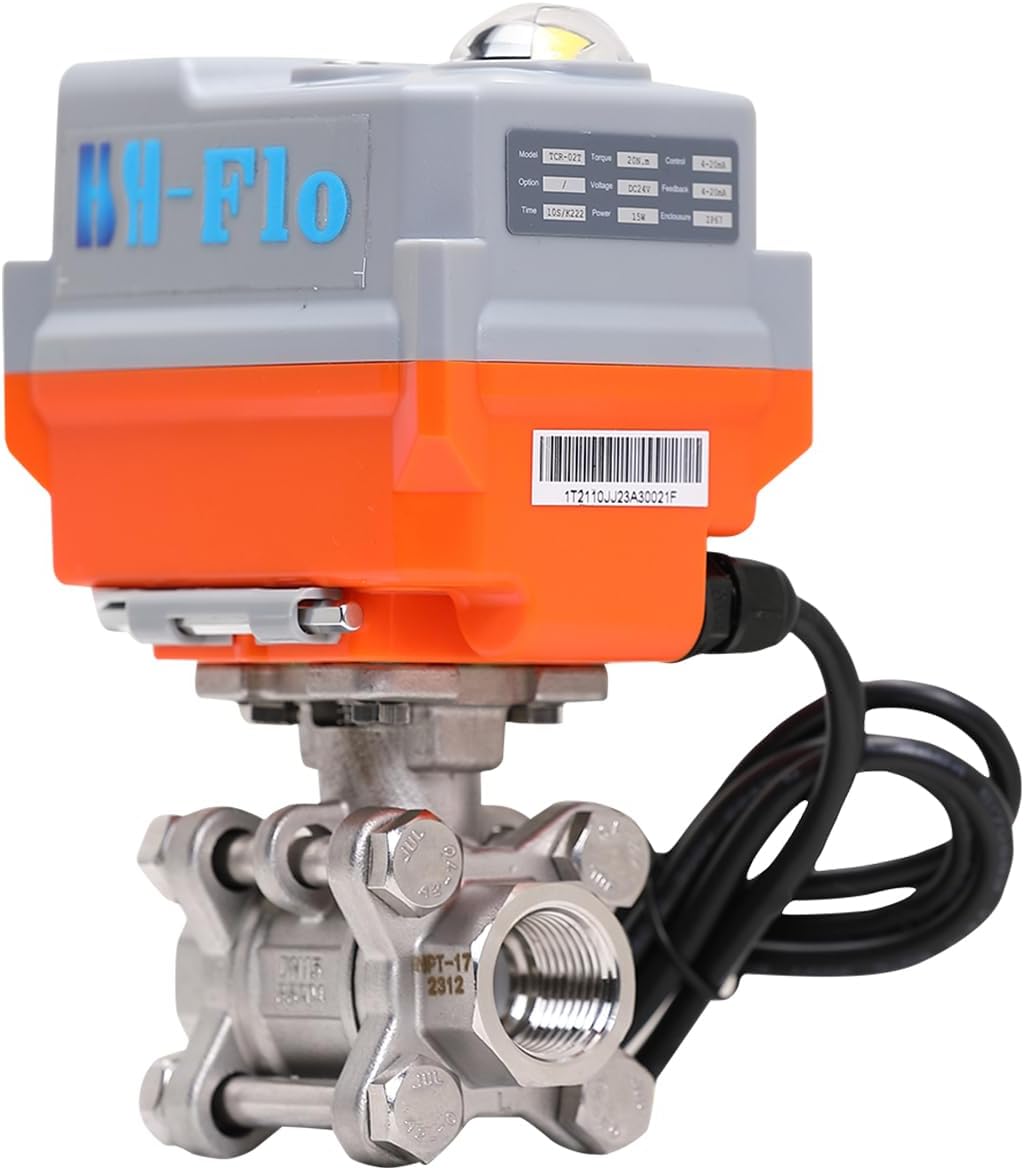

- Equipped With a 2-Way 3-Piece Design 3/4" DN20 Full Bore 304 Stainless Steel Ball Valve, Capable Of Withstanding High Pressure Up To 2.0 Mpa (290 PSI). Lead Free Design Ensures Safety, Making It Particularly Suitable For Drinking Water Systems, Offering Superior Performance And Reliability.
- The Actuator Features a Built-In High-Performance Motor Control Module And Brushless Motor, Achieving Precise Positioning Through Frequency Speed Control. The Built-In Overload Protection Function Ensures The Motor’S Safe Operation, Making It Stable And Reliable Under Various Operating Conditions.
- The Intelligent Menu Design Allows You To Monitor The Device Status At Any Time. It Can Report Real-Time Fault Conditions, Including Stuck Or Other Reasons Causing The Actuator To Malfunction, And Output Fault Warning Signals. The Menu Also Supports The Exchange Of Valve Control Commands, Ensuring Easy And Efficient Operation.
- The Actuator Is Equipped With a 1.3" OLED Screen, Offering High Brightness And No Visual Dead Angles, Making It Clear And Easy To Read While Being Energy Efficient. It Can Display The Valve Opening And External Control Commands In Real-Time, Ensuring You Always Know The Working Status. The Device Automatically Enters Sleep Mode After About 5 Minutes Of Inactivity, But It Can Still Indicate Position Status And Control Commands, Further Conserving Energy.
| UPC | 756740755037 |
|---|---|
| Size | 3.15 x 4.02 x 6.22 inches |
| Brand Name | HSH-Flo |
| Unit Count | 1.0 Count |
| Valve Type | Ball Valve |
| Thread Size | 3/4 inch |
| Thread Type | NPT |
| Manufacturer | SuZhou HSH-Flo Equipments Co.,Ltd |
| Model Number | 3/4 inch |
| Material Type | Acrylonitrile Butadiene Styrene (ABS), Stainless Steel |
| Connector Type | Threaded |
| Item Type Name | 0-10V Proportional Integral Control Ball Valve |
| Exterior Finish | Stainless Steel |
| Item Dimensions | 4.02 x 3.15 x 6.22 inches |
| Number of Ports | 2 |
| Maximum Pressure | 290 Pound per Square Inch |
| Number of Pieces | 3 |
| Specification Met | CE |
| Included Components | Actuator, Valve Body |
| Inlet Connection Size | 3/4 Inches |
| Inlet Connection Type | FNPT Thread |
| Outlet Connection Size | 3/4 Inches |
| Outlet Connection Type | FNPT Thread |
