12V 24V AUTO 48V Wind Turbine Charge Controller, 3000W-6000W Wind Power Generator MPPT Controller for Wind and Solar Energy Systems

Wiring method: 1. Connect the positive and negative terminals of the battery to the positive (red) and negative (black) terminals of the controller battery. 2. Connect the output voltage to the terminals of the three-phase input three-phase wind turbine (green line) of the controller fan. Parameters: 1. Maximum input AC voltage: AC35V 2. Output voltage: V 12/24V 3. Battery charging cut-off voltage: 14.5V ± 0.3V/29V ± 0.3V 4. Maximum charging current: 15A (12V). Maximum charging current: 10A (24V). 5. Wind turbine speed limit voltage 14.5V ± 0.3V, 29V ± 0.3V 6. Protection level: IP67 7. Static power consumption: 0.008a 8. Bearing power: 3000W-6000W 9. Maximum wind speed of bearings: Level 12 10. Working temperature: -35 ° C-65 ° C 11. Input wiring: Three wire system 12. Control mode: compatible with 12V/24V 13. Installation method: bolted connection 14. Do not reverse the positive and negative poles to avoid burning out the controller. Application: Wind controller Package included:1 x Wind Generator Controller

• ✔ This wind turbine controller can automatically match the 12V/24V battery system.
• ✔ This charge controller can be used for 3000W-6000W wind turbines. It can control the wind turbine to automatically charge the battery. When the battery voltage drops to the recovery voltage level, the wind turbine can automatically resume charging the battery.
• ✔ This wind turbine charge controller has IP67 protection level, dustproof, waterproof, anti-oxidation, durable and wear-resistant. Even in very humid environment, the charge controller can work stably. Automatic overvoltage braking, reverse battery and open circuit protection are also included.
• ✔ The controller has the functions of battery overvoltage protection, wind turbine current limiting, wind turbine braking, and speed protection lights. When the controller's red indicator light is on, the battery is fully charged and the wind turbine brakes automatically, or the brake is activated automatically due to overcurrent protection.

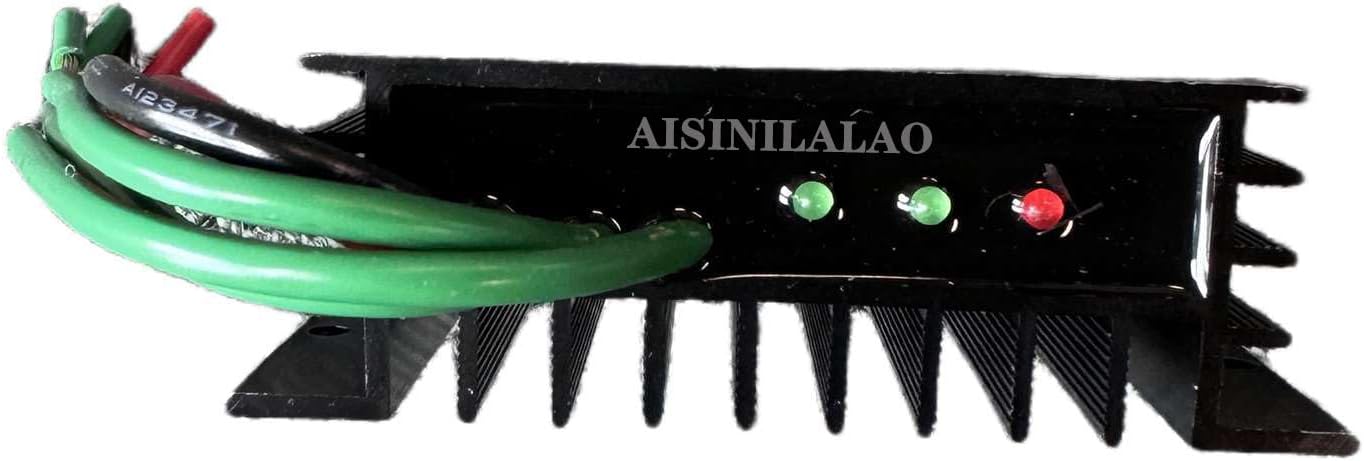

• ✔ The wind turbine charge controller is made of aluminum alloy shell and heat dissipation structure, which has good heat dissipation. The rectification and braking circuit part adopts an integrated module design, which is a step further than the traditional design in terms of heat dissipation and reliability.
